Detailed study of null and time-like geodesics in the
Alcubierre Warp spacetime
Thomas Müller and Daniel WeiskopfThe geodesic equation of the Alcubierre warp spacetime [1] is converted into its non-affinely parametrized form for a detailed discussion of the motion of particles and the visual effects as observed by a traveller inside the warp bubble or a person looking from outside. To include gravitational lensing for point-like light sources, we present a practical approach using the Jacobi equation and the Sachs bases. Additionally, we consider the dragging and geodesic precession of particles due to the warp bubble.
The following images and movies were rendered using the four-dimensional ray tracing system GeoViS [2].
Images

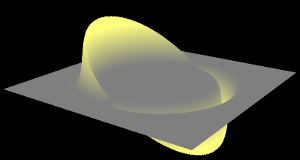

Expansion of the normal volume elements
If you have a web browser that can handle WebGL context (e.g. google-chrome), you can manipulate this view interactively here.
View from the bridge

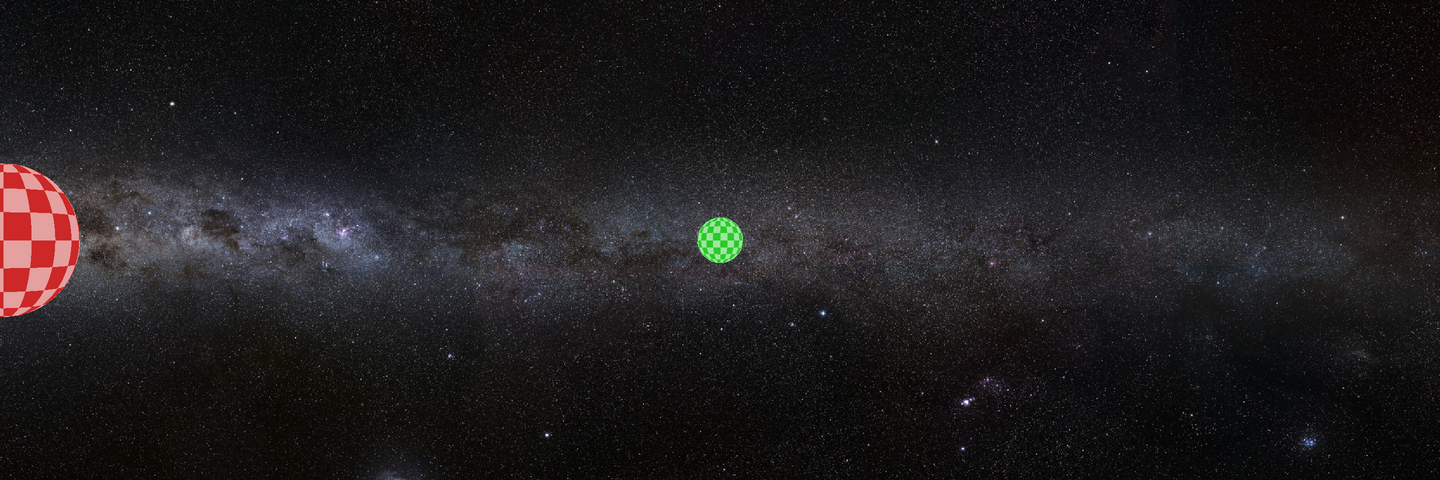

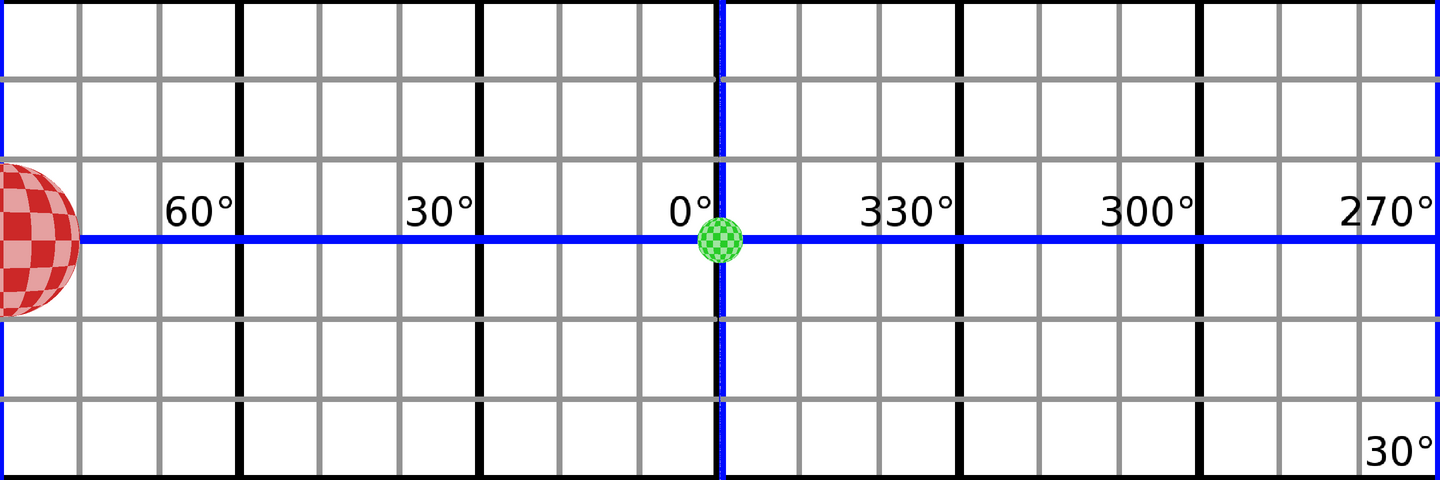

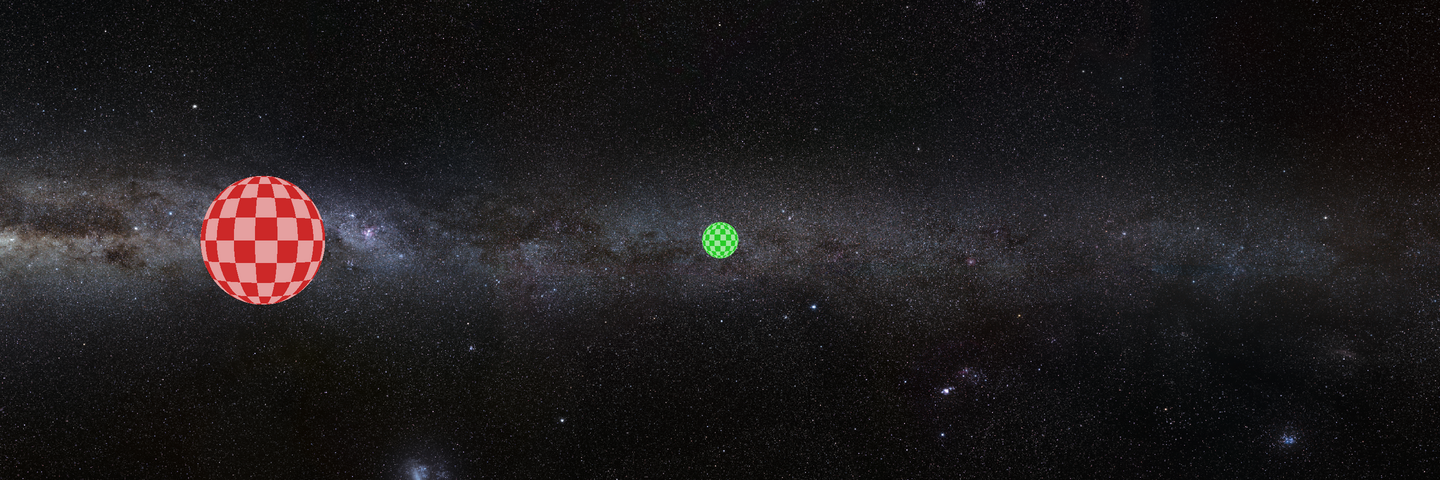

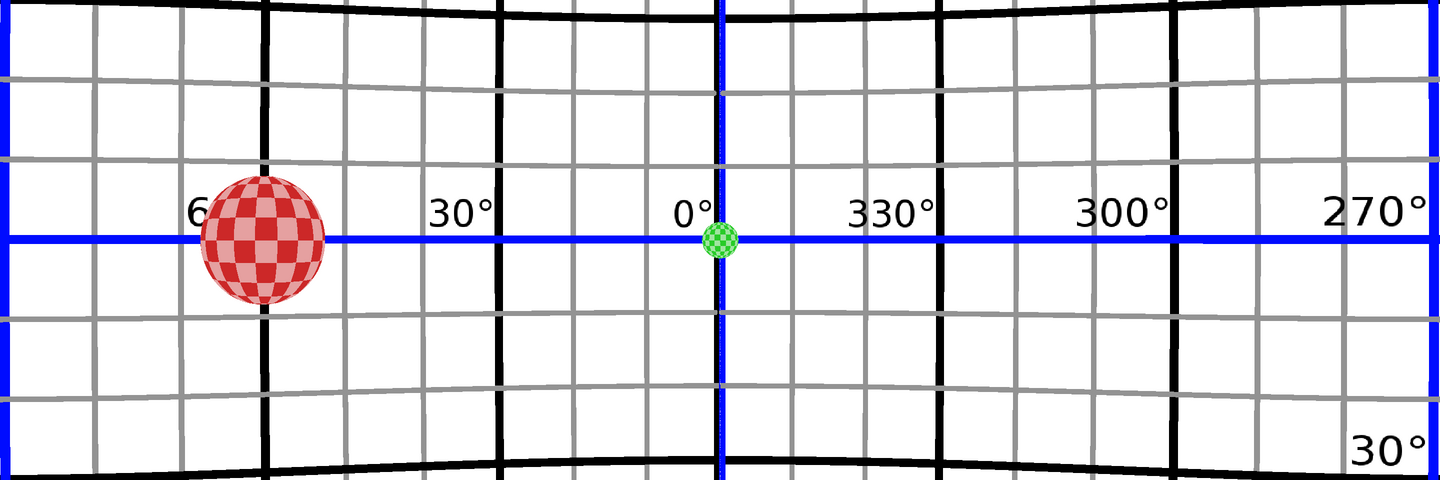

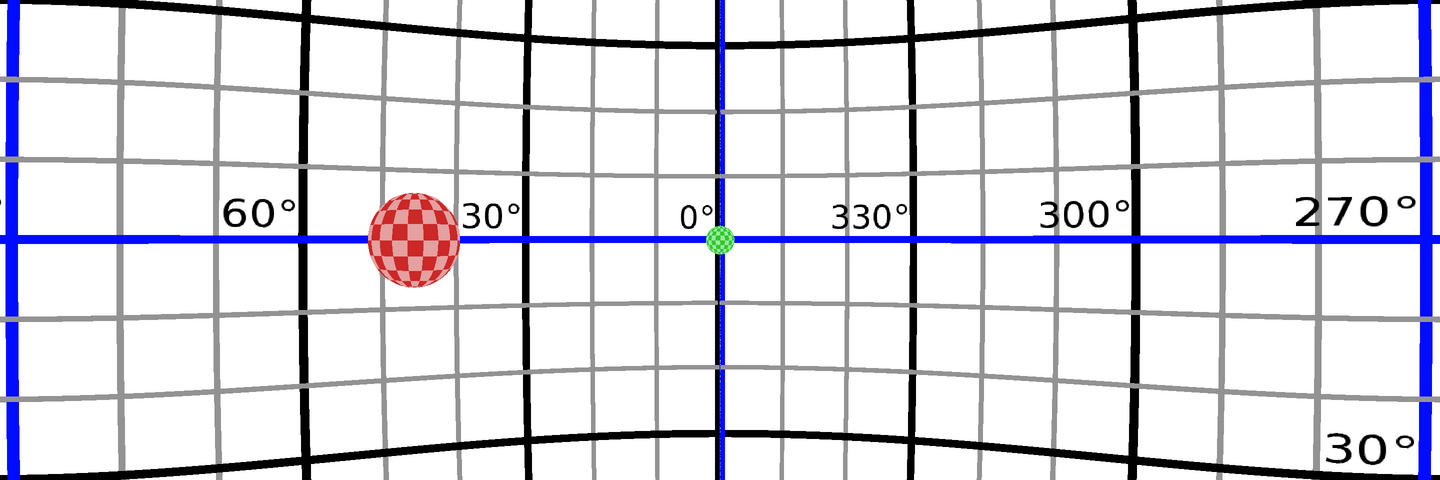

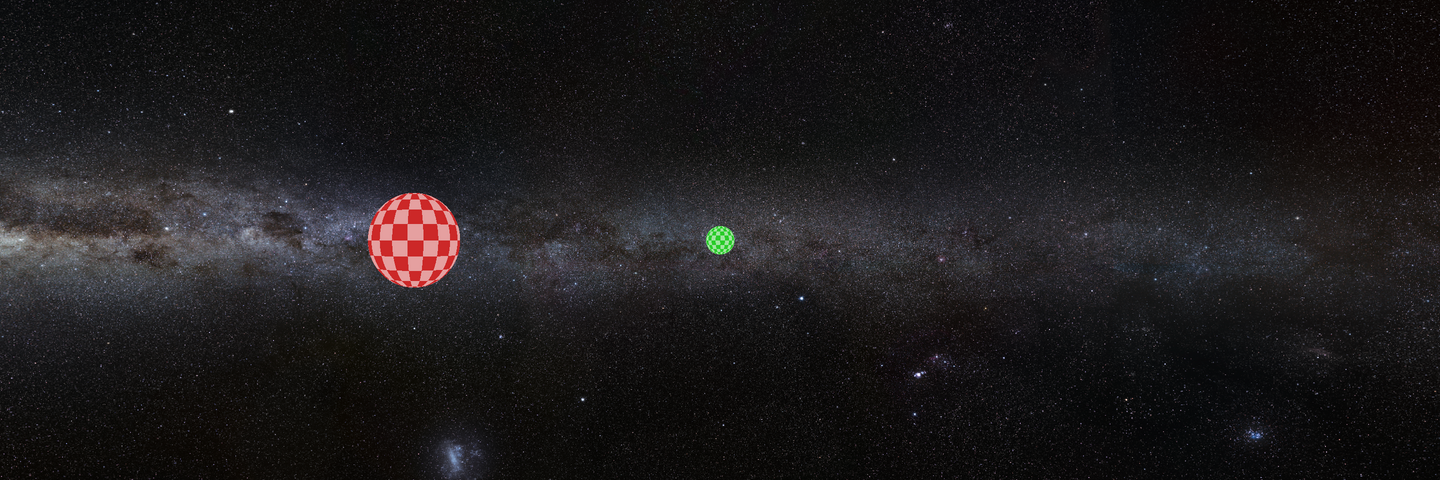

View from the bridge in the direction of motion for different velocities.

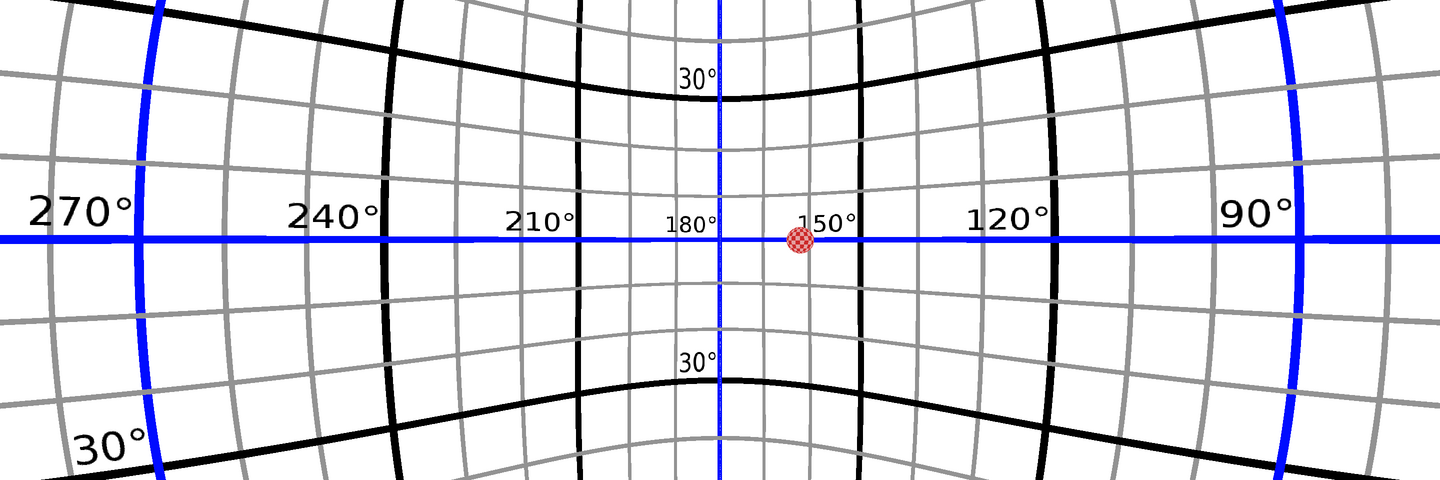

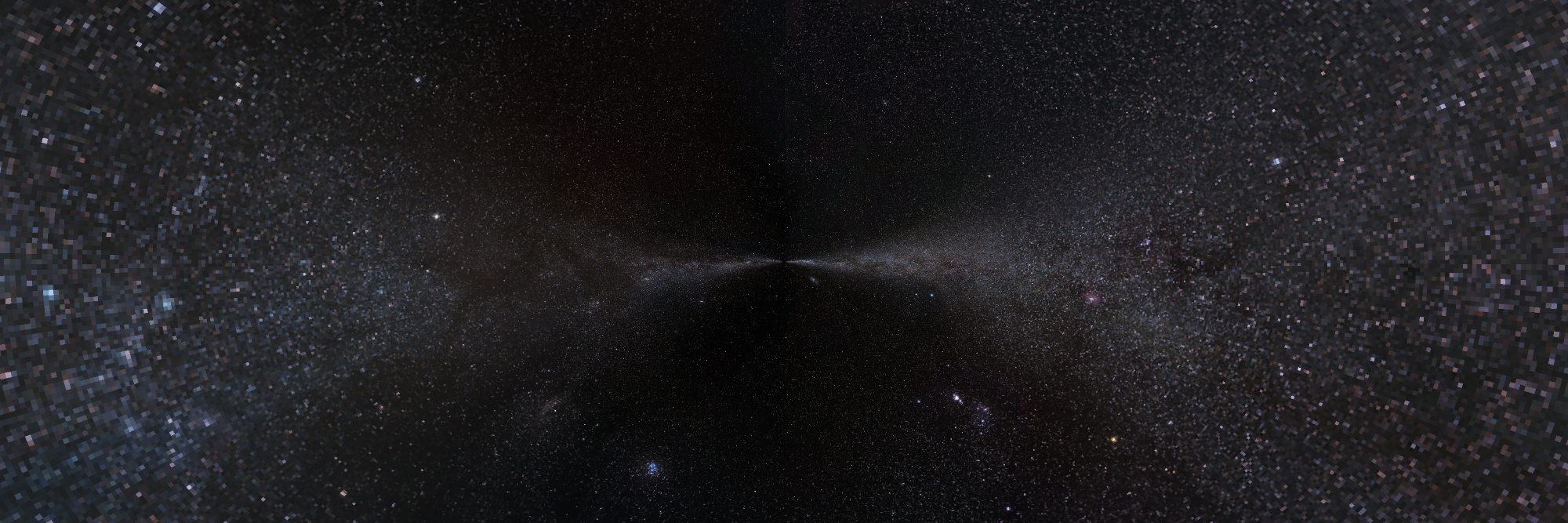

View of a static observer towards the approaching warp bubble

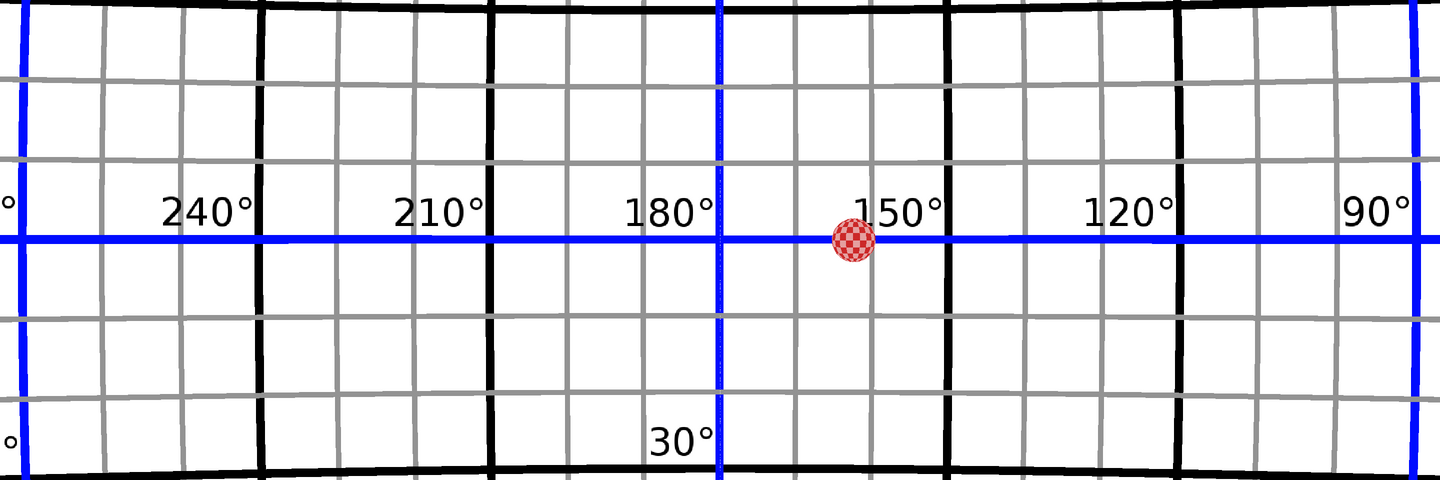

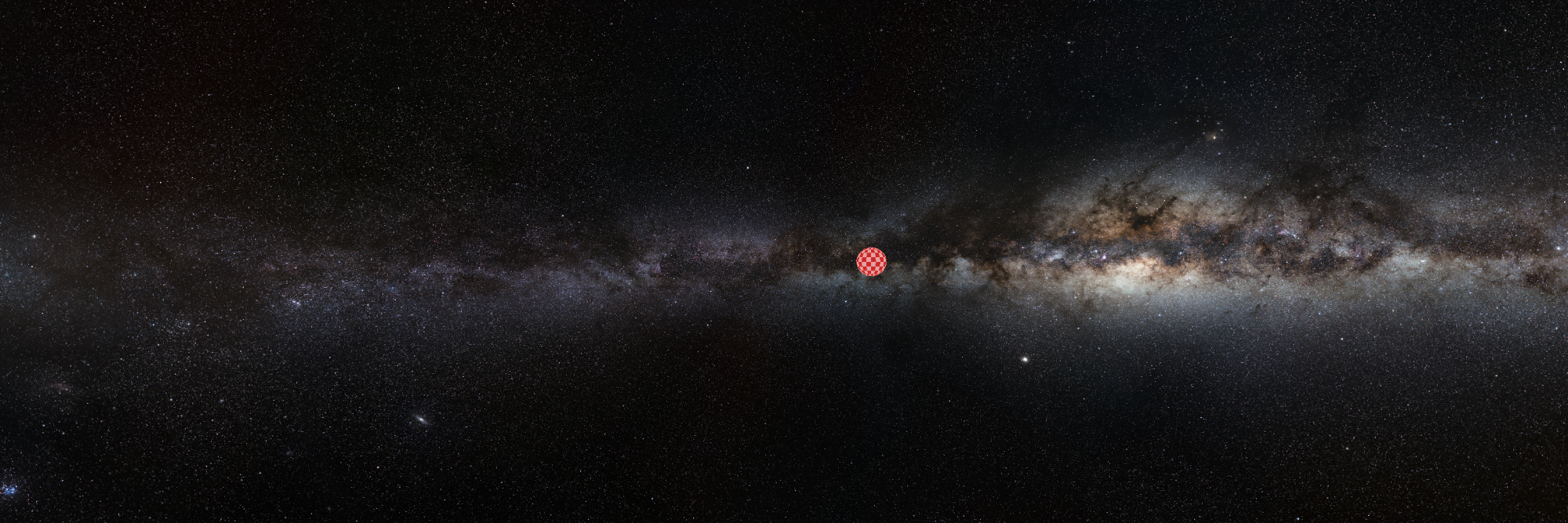

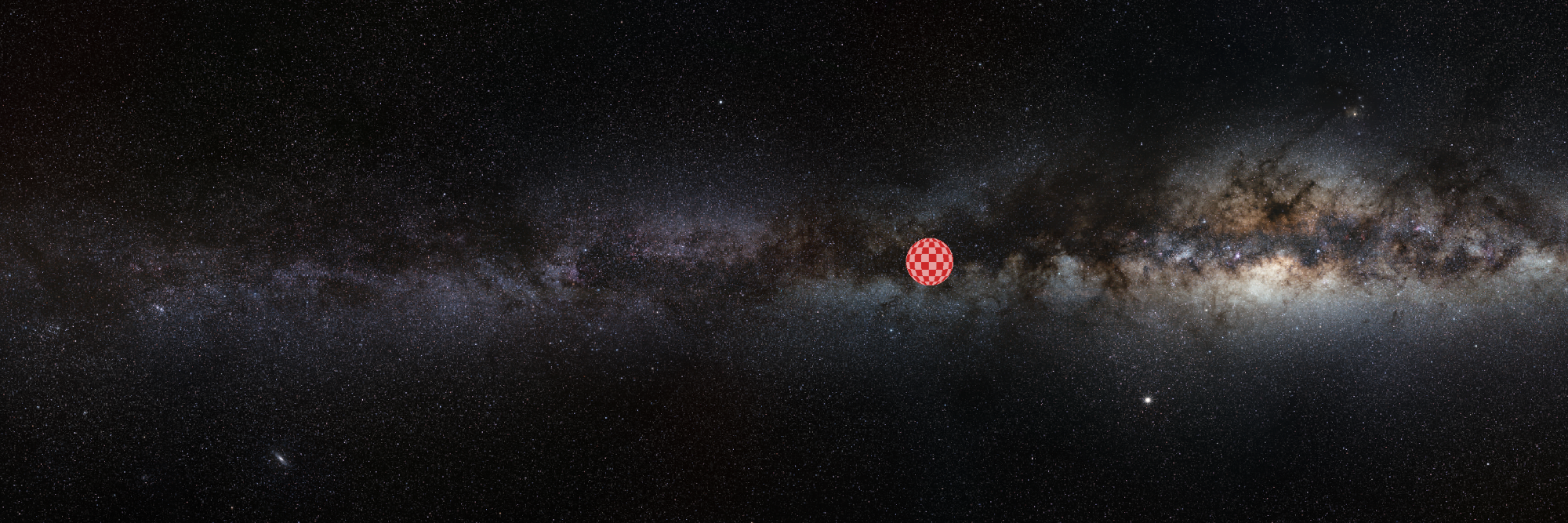

The static observer is located at x = 10, y = 0 and looks in the negative x-direction towards the approaching warp bubble.
View of a static observer

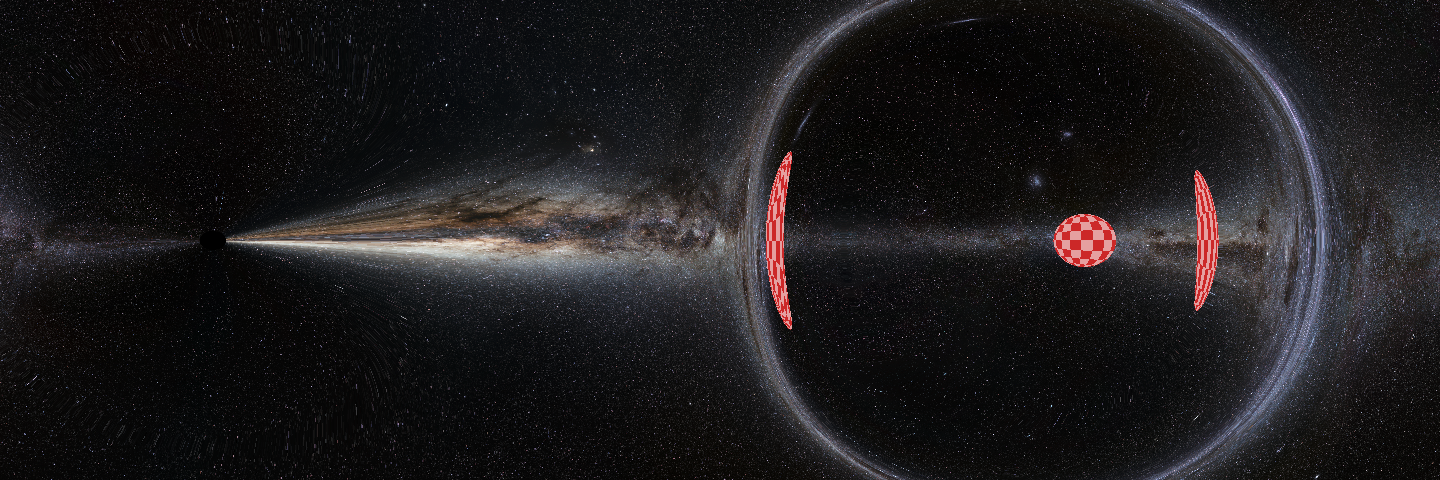

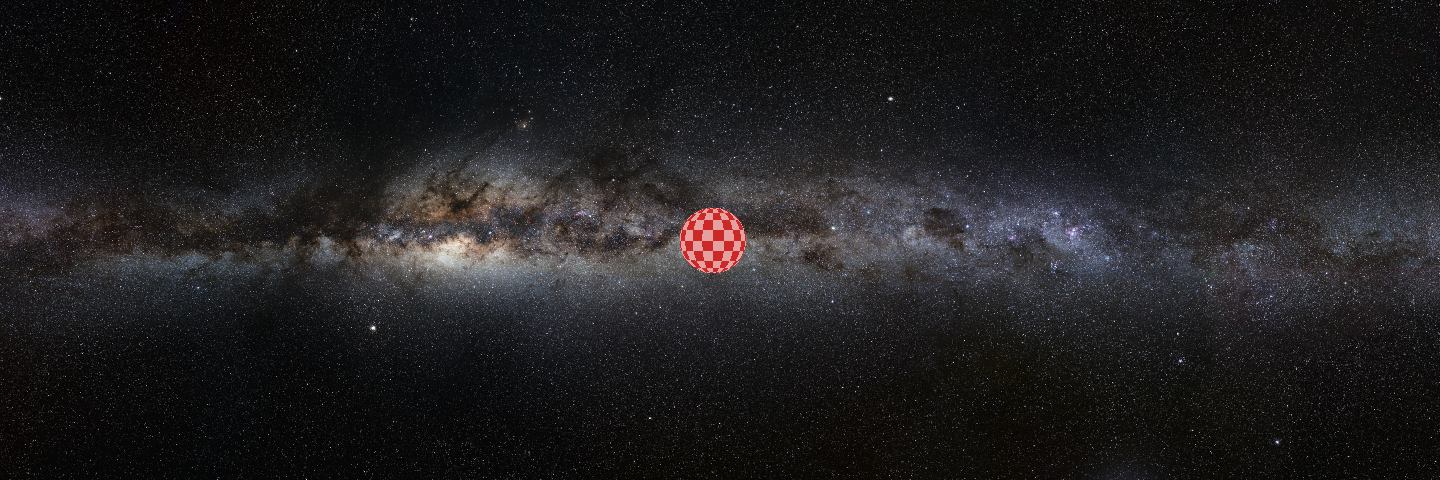

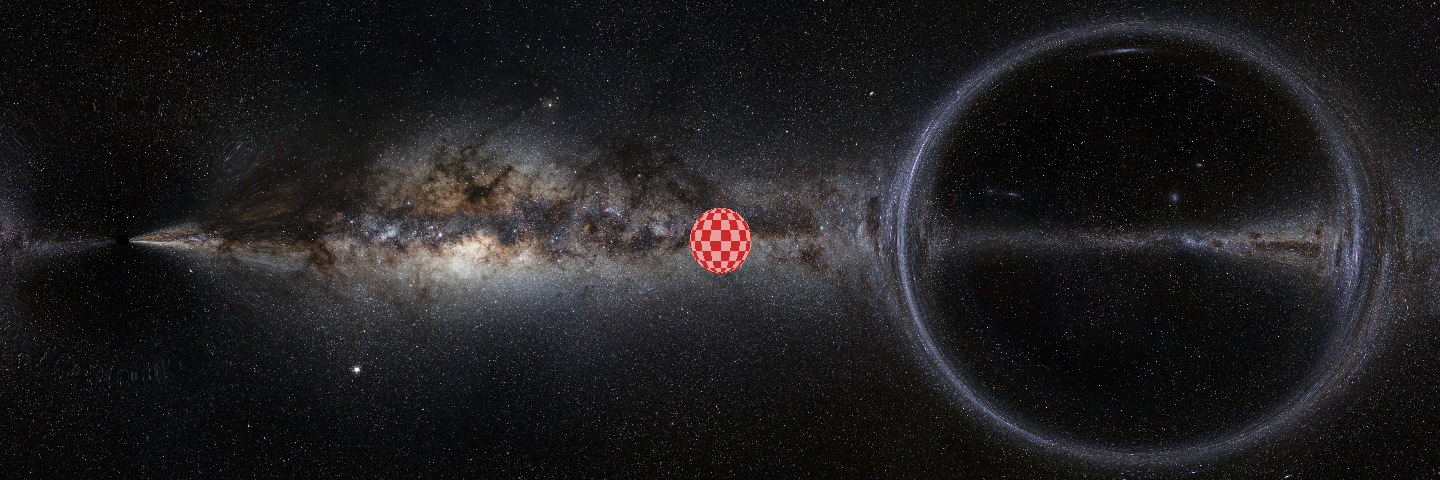

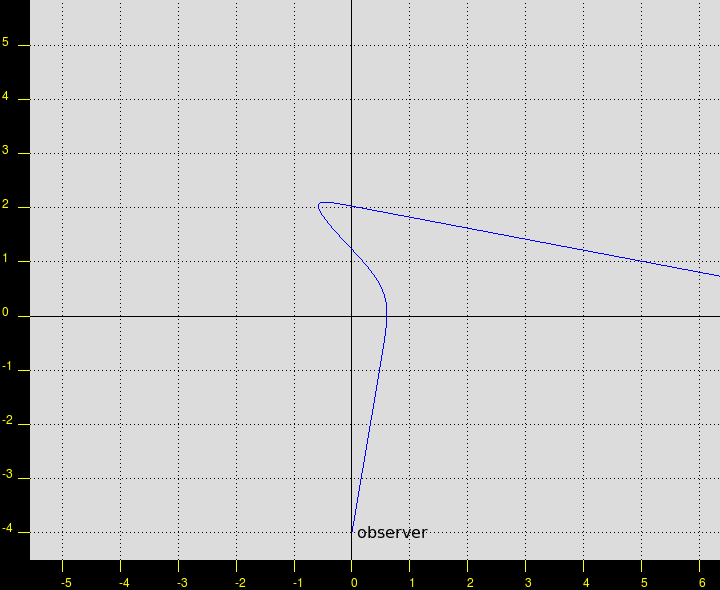

The static observer is located at x = 0, y = -4 and has panorama camera with 180°×60° field of view.
The Milky Way panorama is by ESO/S. Brunier.
Movies

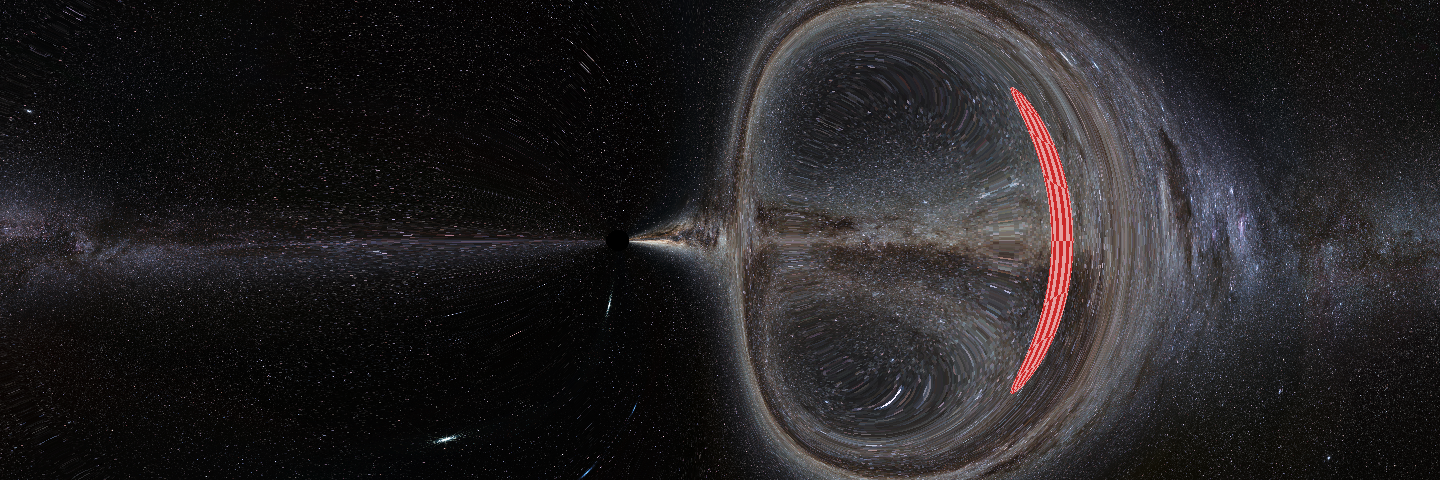

View of a static observer located at x = 0, y = -4 for observation times t = -1 .. 11. Panorama camera has 180°×60° field of view. warp_passing.1440x480.mp4 (mpeg4, 80 MB) warp_passing.300x100.mp4 (mpeg4, 1.6 MB) |
|

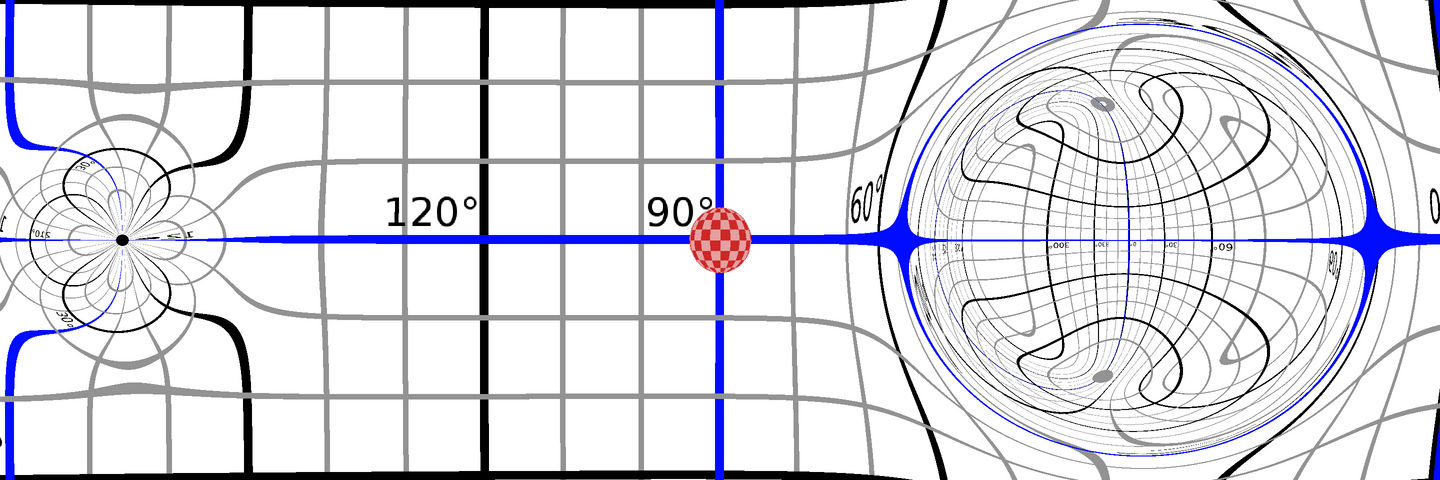

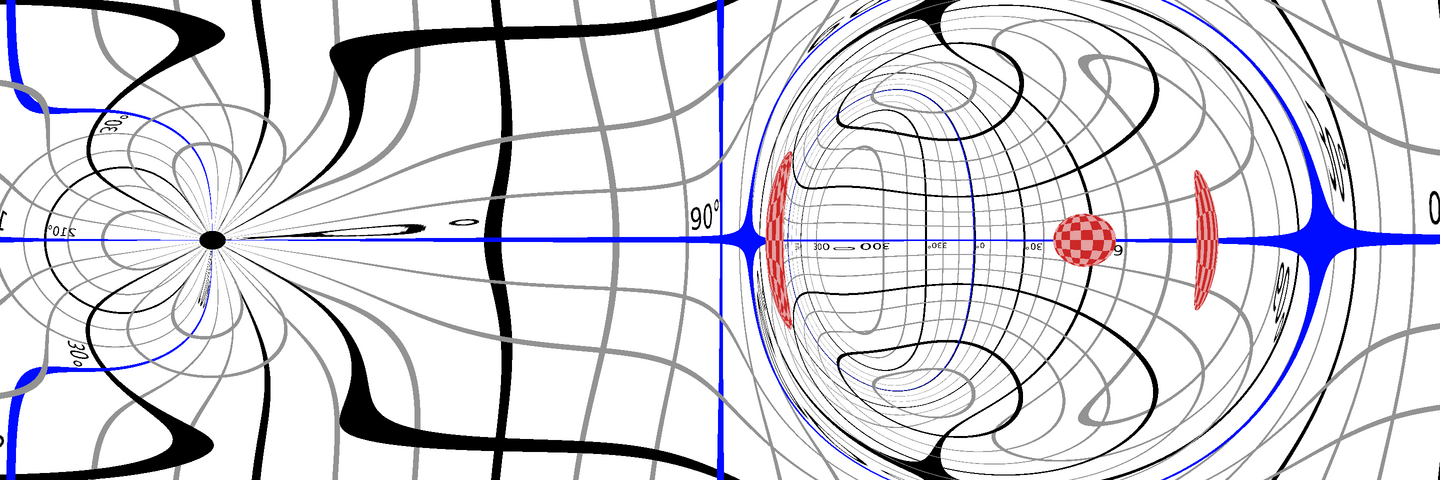

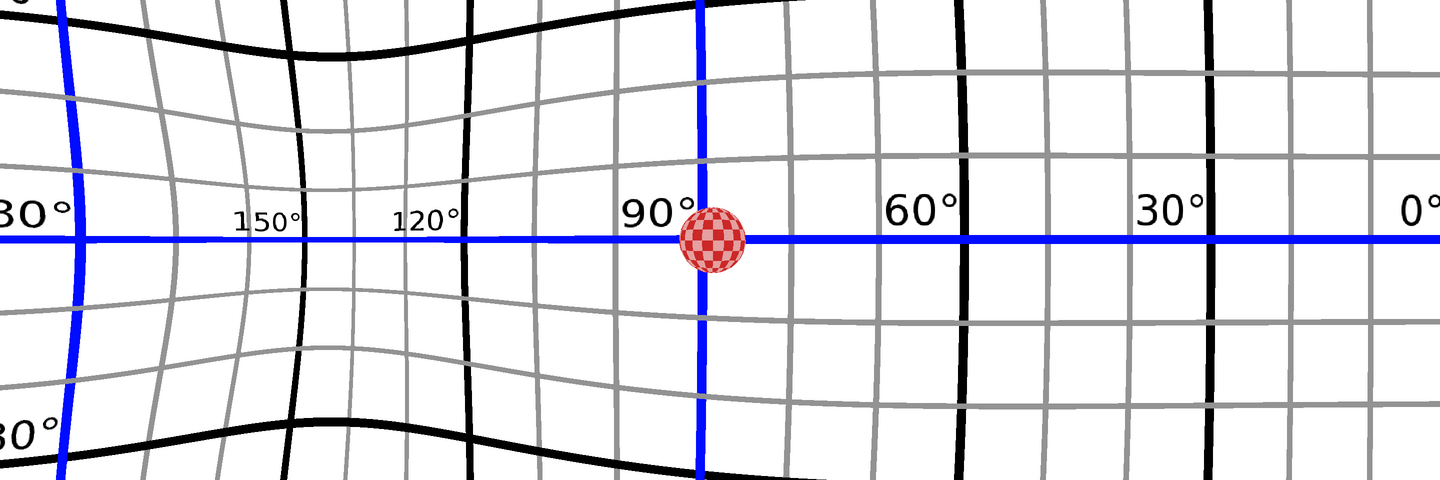

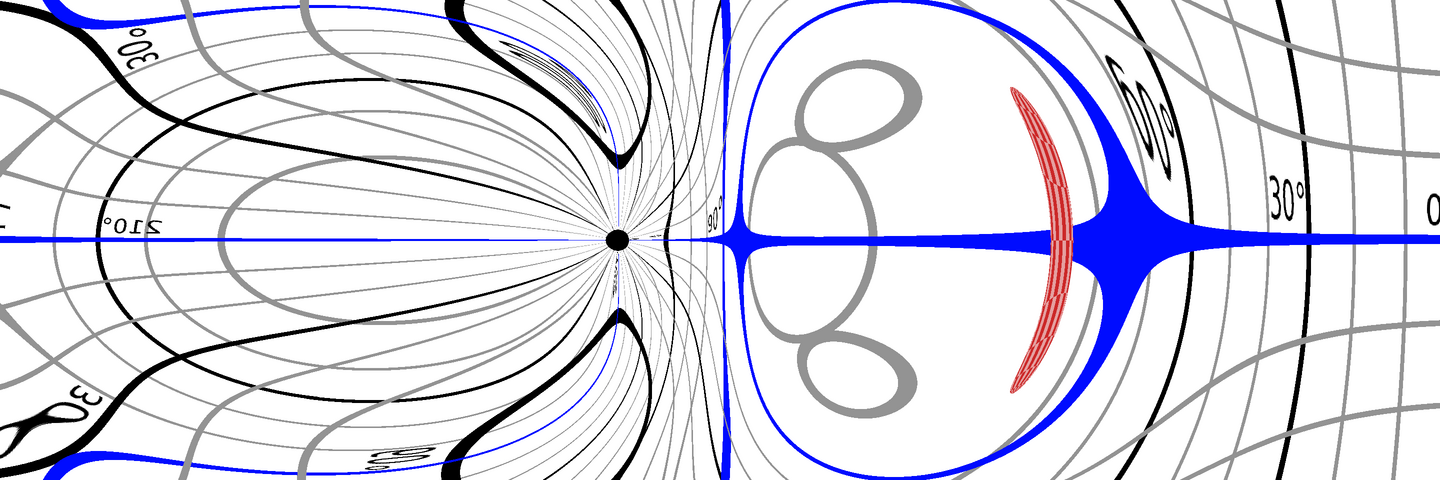

View of a static observer located at x = 0, y = -4 for observation times t = -1 .. 11. warp_passing_grid.1440x480.mp4 (mpeg4, 37 MB) warp_passing_grid.300x100.mp4 (mpeg4, 6.2 MB) |
|
View of a static observer located at x = 0, y = -50 for observation times t = 39 .. 75. Pinhole camera has 50°×20° field of view. warp_passing_far.1000x400.mp4 (mpeg4, 5.7 MB) warp_passing_far.250x100.mp4 (mpeg4, 737 kB) |
|
View of a static observer located at x = 0, y = -50 for observation times t = 39 .. 75. Pinhole camera has 50°×20° field of view. warp_passing_far_grid.1000x400.mp4 (mpeg4, 4.8 MB) warp_passing_far_grid.250x100.mp4 (mpeg4, 1.1 MB) |
|
View of a static observer located at x = 0, y = -50 for observation times t = 39 .. 75. Pinhole camera has 50°×20° field of view. (combined) warp_passing_far_both.1000x800.mp4 (mpeg4, 6.3 MB) |
Particles from the bridge with initial velocity v=0.5c. The blue-shaded region represents the warp bubble. particleFront_bridge_v2p0.700x500.mp4 (mpeg4, 1.7 MB) |
|
Particles injected from outside at t=-6 with initial velocity v=0.5c. The blue-shaded region represents the warp bubble. particleFront_lateral_tm6.700x350.mp4 (mpeg4, 1.3 MB) |
|
Particles injected from outside at t=-4 with initial velocity v=0.5c. The blue-shaded region represents the warp bubble. particleFront_lateral_tm4.700x350.mp4 (mpeg4, 1.2 MB) |
Java Application

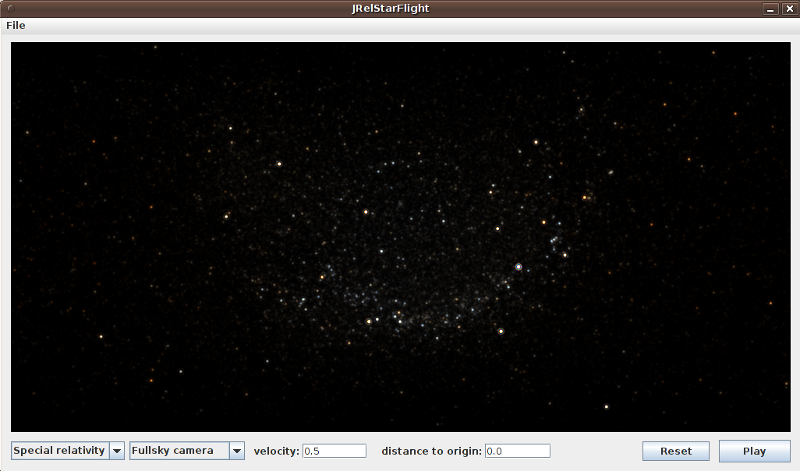

The Java application was developed using OpenJDK 1.6.0_20 (IcedTead6 1.9.2), NetBeans 6.8, and NetBeans OpenGL Pack 0.5.5.
Linux amd64 | gzip-compressed tar-file (16 MB) | md5: 5e7e4d6160d4ce4237493d03bb8317fe |
Linux i586 | gzip-compressed tar-file (16 MB) | md5: ee9760a8f328dd6ddeef0f9d38fa830f |
Windows 64 | zip-archive (16 MB) | md5: 57f1ba8b3dc367dd01b1f275cd5e8f65 |
Windows 32 | zip-archive (16 MB) | md5: d9a7d5c9ab9fa0d19692cc9e34d9e7a3 |
Technical details and a brief description of the user interface can be found here.
System requierements:
- You need a graphics board that supports the shader language GLSL; e.g. NVidia GeForce 8 Series or higher.
- Java Runtime Library must be installed.
Geodesic Viewer

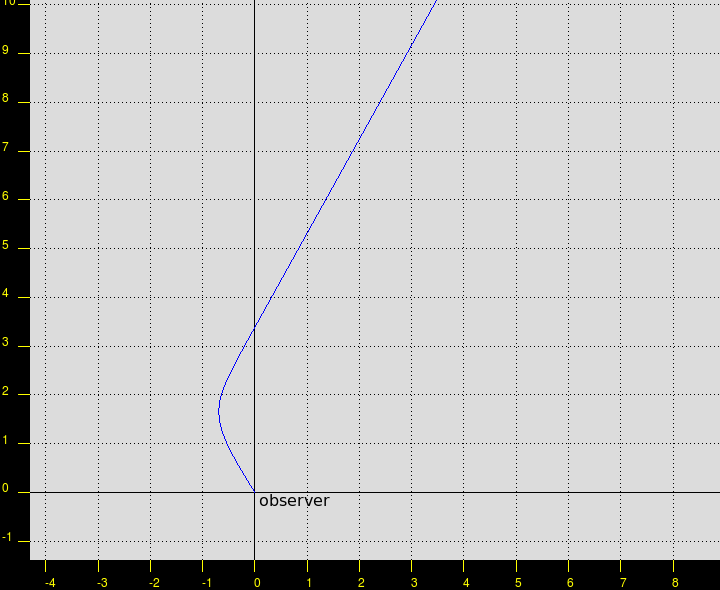

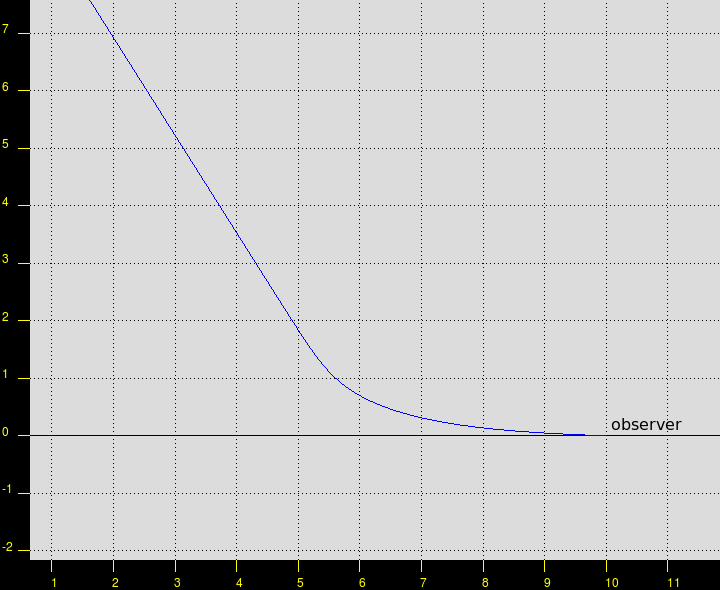

The following configuration files can be used for studying geodesics with the GeodesicViewer.
warp_bridge.zip | md5sum: ce47ca94886987b8a6f6e789921d989a | |
warp_towards.zip | md5sum: 57b83b0b8f42f67463db9ff153ba219b | |
warp_lateral.zip | md5sum: 57b83b0b8f42f67463db9ff153ba219b |
References
- [1] M. Alcubierre, "The warp drive: hyper-fast travel within general relativity,"
Class. Quantum Grav. 11, L73-L77 (1994). - [2] T. Müller, Dissertation: "Visualisierung in der Relativitätstheorie" (in german),
Eberhard-Karls-Universität Tübingen (2006), [tobias-lib]. - [3] T. Müller, D. Weiskopf, "Detailed study of null and time-like geodesics in the Alcubierre Warp spacetime,"
Gen.Rel.Grav.(online first)
DOI: 10.1007/s10714-011-1289-0.
